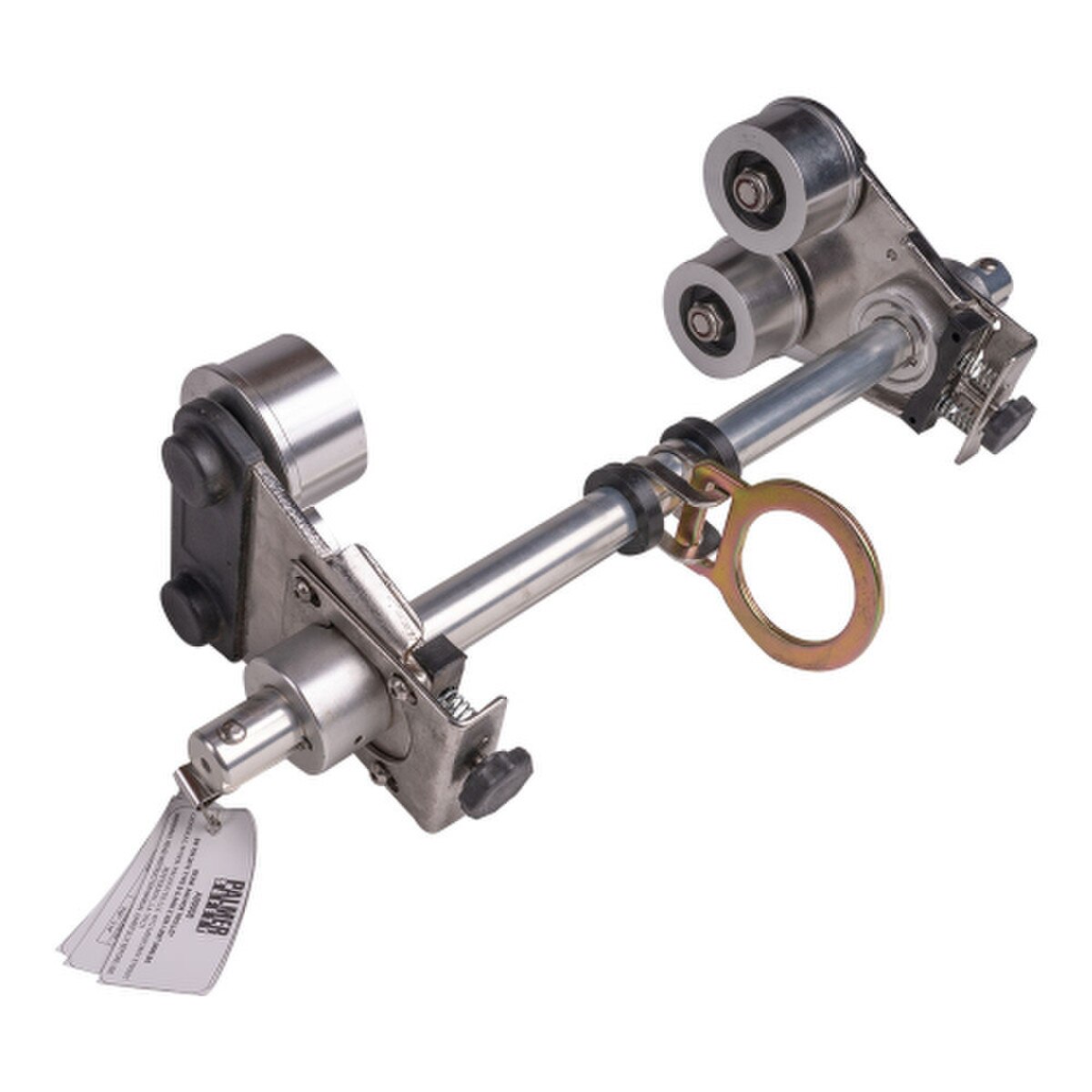

Beam Anchor Trolley A00008
Details
DESIGN:
Anchor connector installed on flange of beams.
Adjustment of the jaw to variable positions enables it to be installed to varying flange widths.
Glides smoothly along the beam and provide horizontal mobility.
COMPATIBLE WITH MIN FLANGE WIDTH: 3.14”
COMPATIBLE WITH MAX FLANGE WIDTH: 9.84”
MATERIAL: Aluminum Alloy & Stainless steel.
MINIMUM BREAKING STRENGTH: 5000 lbs.
Meets or Exceeds ANSI Z359.1-2007
Anchor connector installed on flange of beams.
Adjustment of the jaw to variable positions enables it to be installed to varying flange widths.
Glides smoothly along the beam and provide horizontal mobility.
COMPATIBLE WITH MIN FLANGE WIDTH: 3.14”
COMPATIBLE WITH MAX FLANGE WIDTH: 9.84”
MATERIAL: Aluminum Alloy & Stainless steel.
MINIMUM BREAKING STRENGTH: 5000 lbs.
Meets or Exceeds ANSI Z359.1-2007
