3/8" Anchor Shackle 5410605-APX

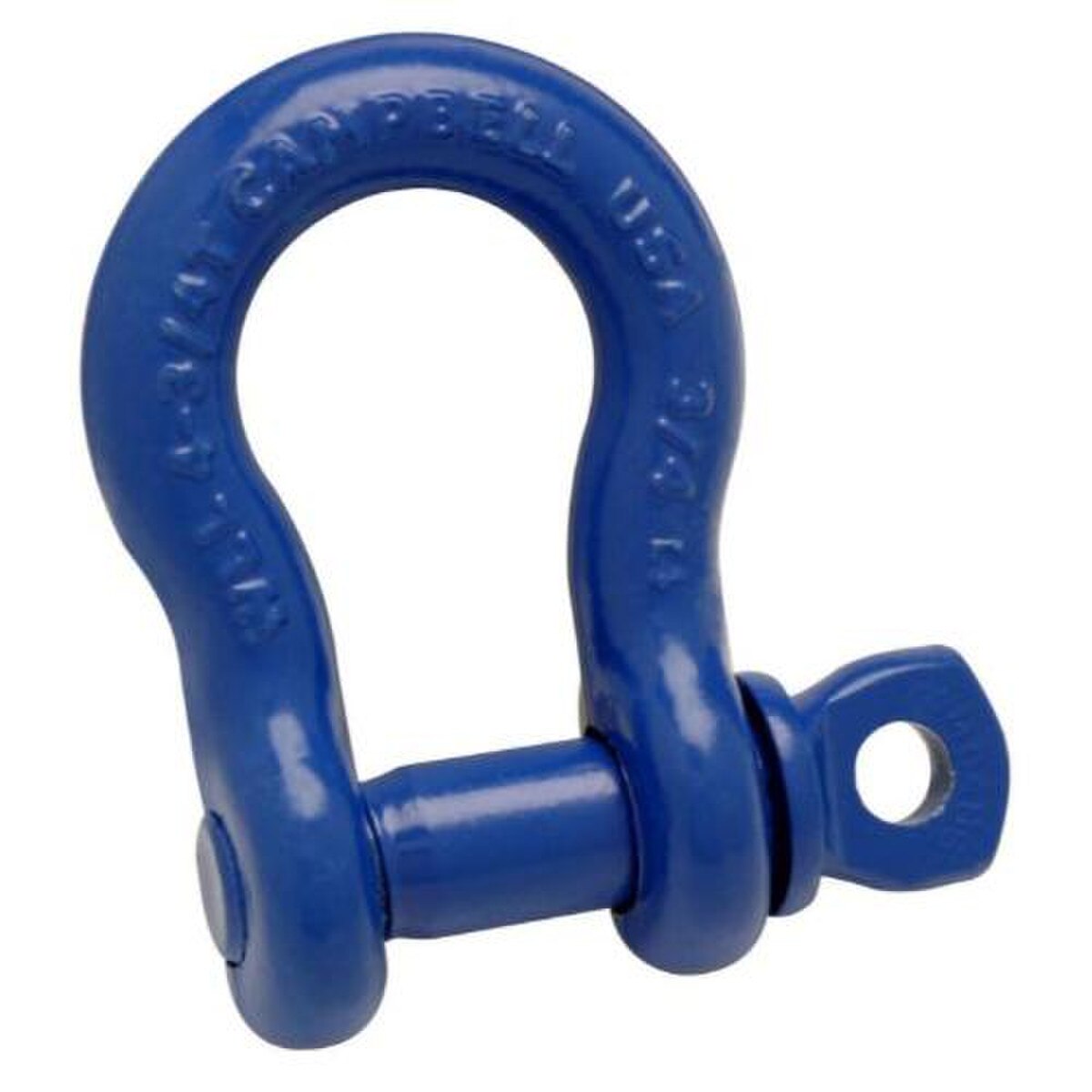

Campbell's 3/8" Anchor Shackle with Screw Pin is crafted from drop-forged carbon steel and finished with a blue paint coating for easy identification. The shackle body is self-colored and meets the stringent design requirements of Federal Specification RR-C-271, Type IVA, Grade A, Class 2 under the C-419-S standard. Each shackle is permanently marked with the working load limit, size, manufacturer’s name, date code, and “USA” for full traceability. These shackles undergo rigorous statistical testing for impact resistance, tensile strength, hardness, ductility, and fatigue to ensure reliability and safety. The 419 Series complies with or exceeds all ASME B30.26 “Rigging Hardware” manufacturing standards, including material ductility, design factor, identification, and effective temperature range requirements. Proof testing can be provided upon request in accordance with ASME Section 26-1.4. With a 6 to 1 design factor, the pins and bolts are heat-treated alloy steel for enhanced strength. DO NOT EXCEED THE WORKING LOAD LIMIT.
Key Features
- Shackle Bodies Are Drop-Forged Carbon Steel
- Self Colored (Painted Blue)
- C-419-S Shackles Meet the Design Requirements of Federal Specification RR-C-271, Type IVA, Grade A, Class 2
- Working Load Limit, Size, Manufacture Name, Date Code and USA Permanently Marked on Each Shackle
- Statistically Tested for Impact Resistance, Tensile Strength, Hardness, Ductility and Fatigue
- 419 Series Shackles Meet or Exceed All Manufacturing Requirements of the ASME B30.26 ”Rigging Hardware”. These Include the Material Ductility Requirement (Section 26-1.1.2), the Design Factor Requirement (Section 26.1.2), the Identification Requirement (Section 26-1.5.1), and the Effective Temperature Range (Section 26-1.6.1). The Shackles Can Be Proof Tested in Accordance with Section 26-1.4 Upon Request
- 6 to 1 Design Factor
- Pins and Bolts Are Heat-Treated and Made of Alloy Steel
- DO NOT EXCEED THE WORKING LOAD LIMIT
